  • TS Optics 360° Rotation and Quick Coupling - M54x1 for Skywatcher focusers
  • TS Optics 360° Rotation and Quick Coupling - M54x1 for Skywatcher focusers

    • Číslo produktu: TSROTM541
    • Výrobca: TS Optics

    Naša cena: 119.90 €
    1-2 týždne
    Sledovať dostupnost - TS Optics 360° Rotation and Quick Coupling - M54x1 for Skywatcher focusers
    Chcem byť informovaný až bude tovar na sklade

    *

  • Tento produkt je dostupný tiež v nasledujúcich variantách:
     TS Optics 360° Rotation Adapter for M54x0.75 60.60 €
     TS Optics 360° Rotation and Quick Changer - M48x0.75 - short 63.50 €
     TS Optics 360° rotation and quick coupling SC to M48 thread - short design 63.50 €
     TS Optics Rotation Adapter, Filter Holder and Quick Coupling - M48 thread 69.90 €
     TS Optics 360° Rotation Adapter - M63x1 male Thread - M68x1 female Thread 70.95 €
     TS Optics Rotation Adapter, Filter Holder and Quick Coupling - T2 thread 72 €
     TS Optics Rotation Adapter, Filter Holder and Quick Coupling - M42 to T2 thread 72.60 €
     TS Optics Rotation Adapter, Filter Holder and Quick Coupling - M48 to T2 thread 72.60 €
     TS Optics 360° rotation and quick coupling and adaptation from M54 to M48 93 €
     TS Optics Rotation Adapter, Filter Holder and Quick Coupling - M54x0,75 thread 99.90 €
     TS Optics 360° Rotation and Quick Changer - M68x1 - short 106.25 €
     TS Optics 360° Rotation and Quick Changer - M63x1 - 10 mm short 119.90 €
     TS Optics 360° Rotation and Quick Coupling - M54x1 for Skywatcher focusers 119.90 €
     TS Optics 360° Rotation and Quick Changer - M54x0.75 - 10 mm short 121 €

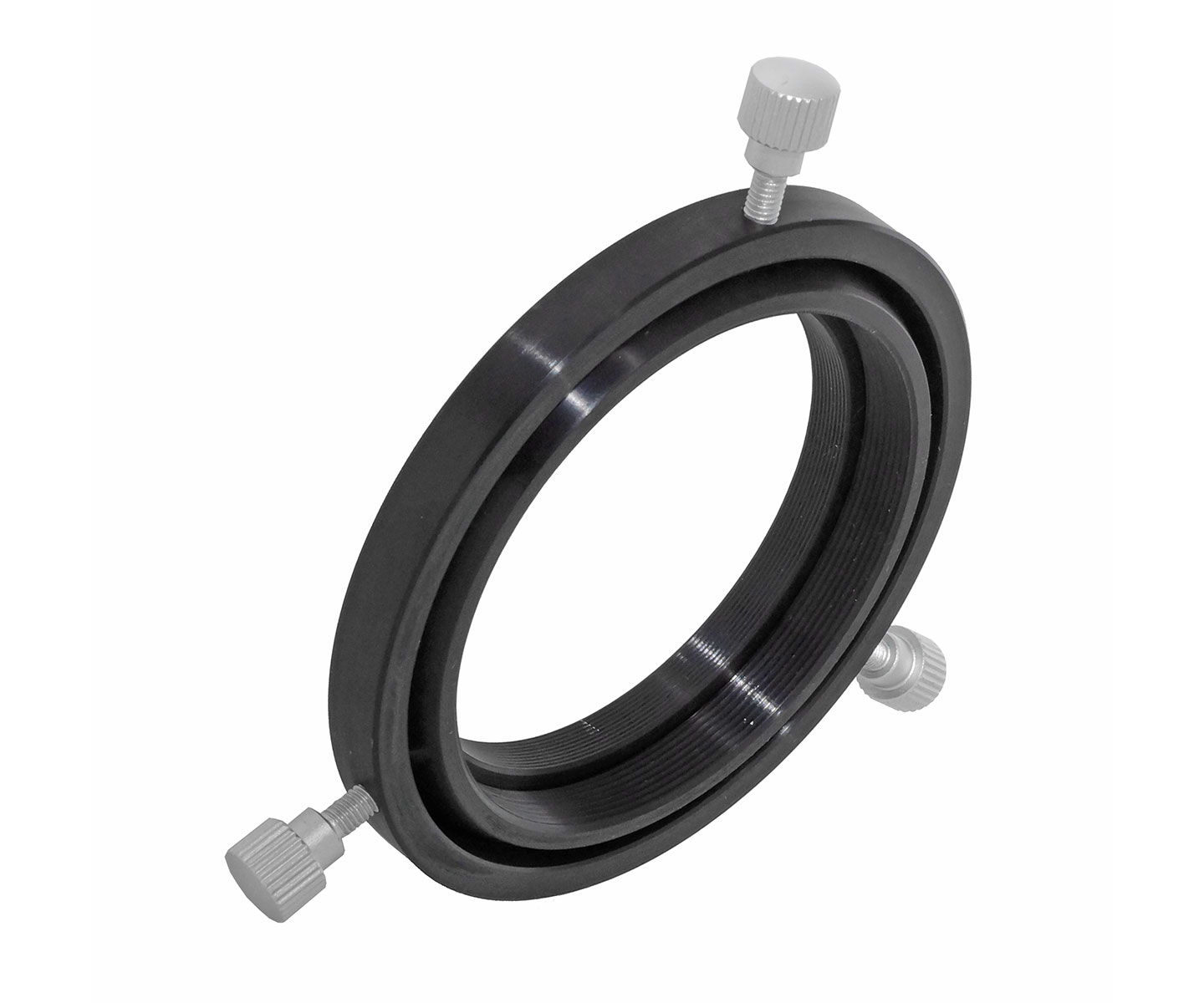

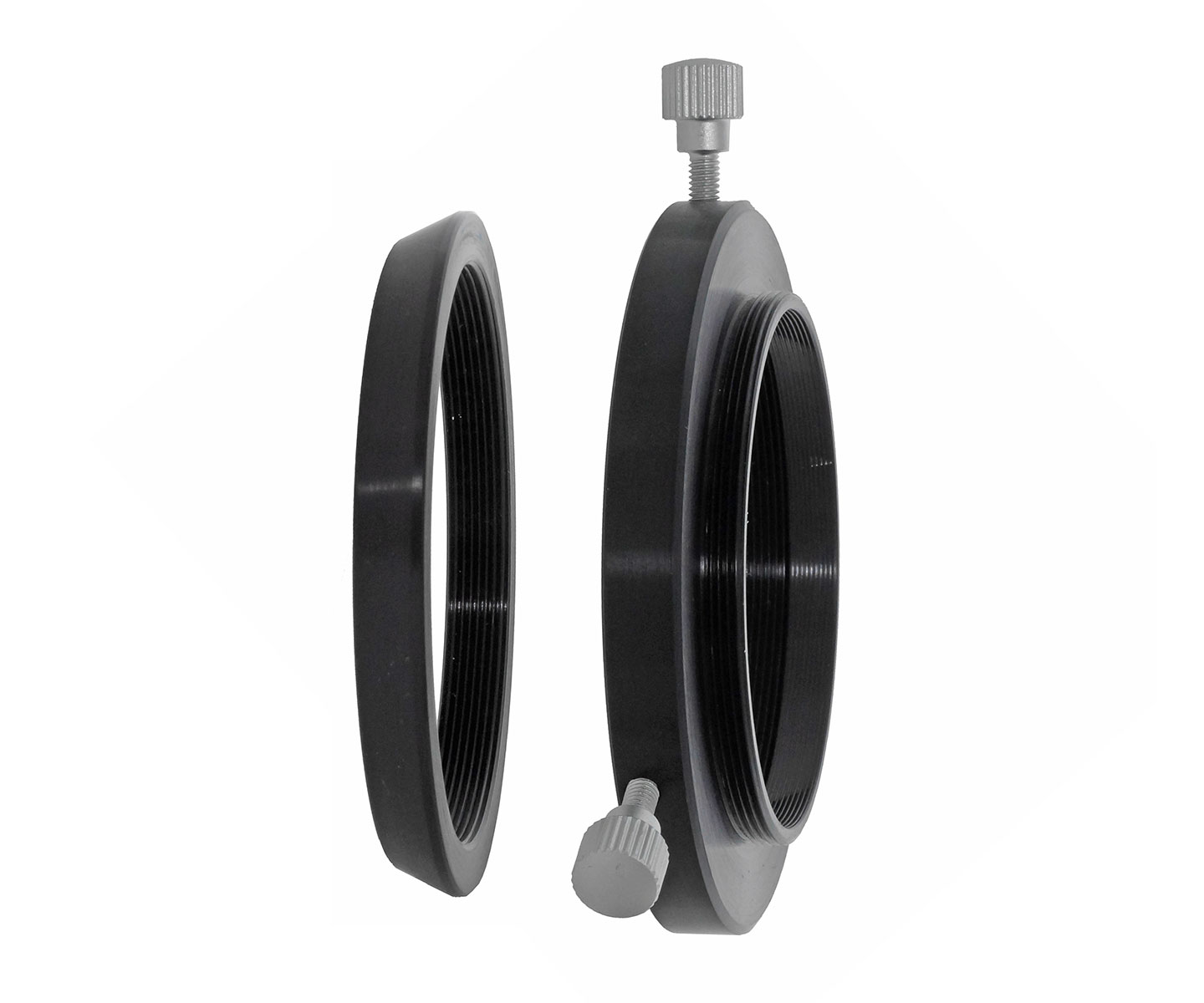

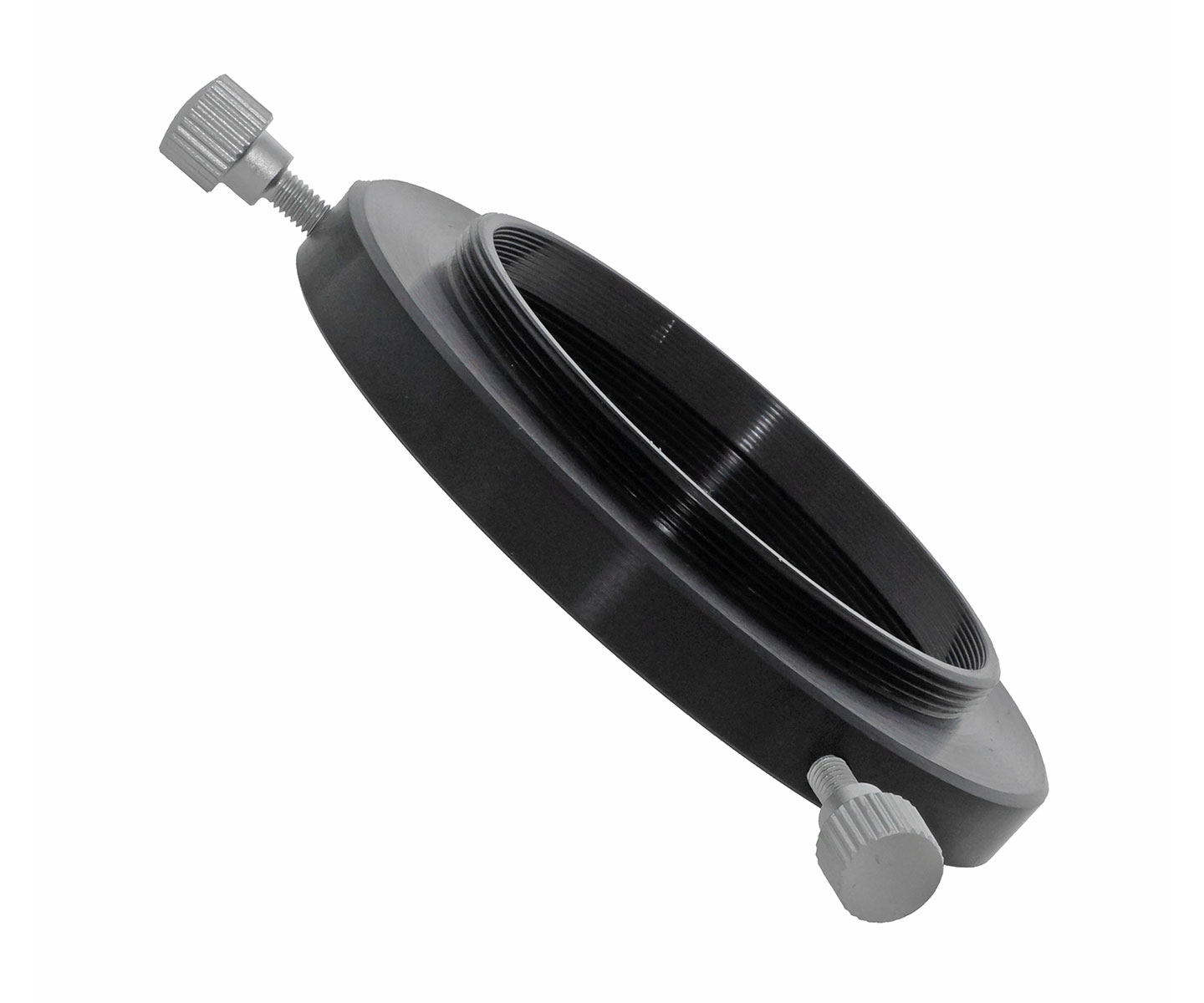

TS-Optics M54x1 Rotation and Quick Coupling with only 10 mm overall length

This adapter is a real problem solver from Teleskop-Service for all astrophotographers, who for example want to connect a coma corrector to a Skywatcher Newtonian and screw it. The rotator comes in between the screw adapter and the M54x1 thread of the focuser.
The application is simple, the rotator is screwed into the focuser. On the camera side, the M54x1 female thread is now available again for further adaptations, but now with the rotation option.

The advantages of the TSM54RO1 adapter:

♦ Only 10 mm optically effective overall length - ideal for short adaptations.
♦ Perfect centering - the inner adapter ring is always exactly in the center - due to the clamping it tightens itself.
♦ The free inner diameter is 51 mm, so the adapter offers free passage for 2″ barrels - for example when a corrector is screwed to the focuser and must be rotatable.

Connection thread telescope side: M54x1 female thread - length 8 mm
Connection thread camera side: M54x1 male thread - length 3.5 mm
Optically effective overall length: 10 mm (without the external thread)
Free inner diameter: 51 mm
Locking: Fixing of the adapter position via 3x M4 knurled screws
Obsah balenia:
TS rotation adapter
